The 5 Metre Dome

The 5 Metre Dome Specifications

Diameter: 5 metres - 16 feet

Height: 2.5 metres - 8 feet

Floor Area: 20m²

Tube frame: 31.8mm galvanised steel

Entrances: Custom made

Capacity: 20 people (to confirm with the client)

Optional vents & opening sides

Prices on enquiry

PVC fire retardant canopy; variety of colours

Clear PVC bay window or panels

Structural engineering certification

Can be installed on: Concrete, grass or platform

Assembled in: 1.5 hours

Disassembled in: 30 minutes

Transport: by Ute

Australian owned and made

The 5 Metre Dome Examples

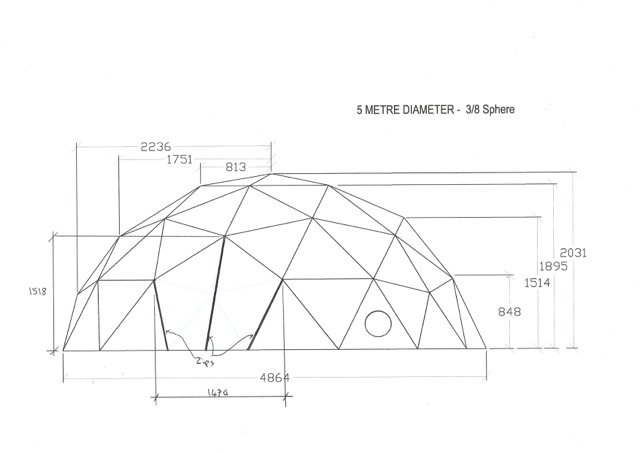

5 Metre 3/8 Sphere Frame

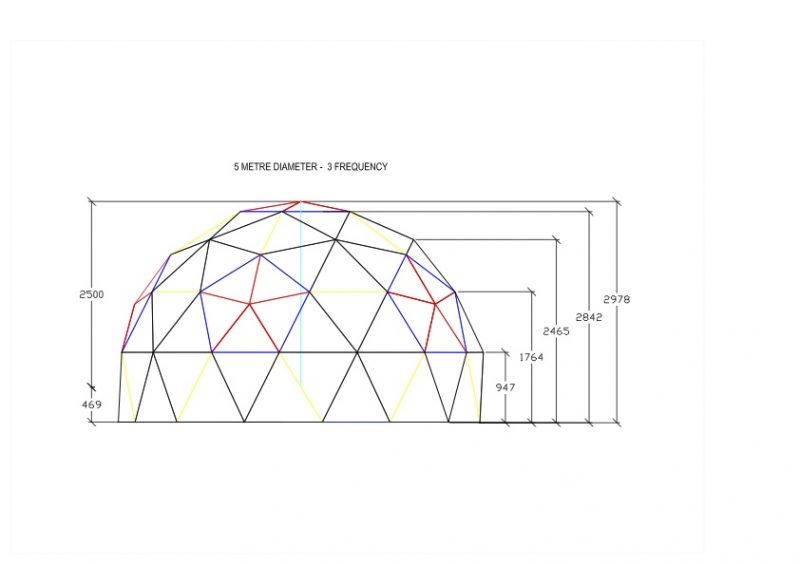

5 Metre 5/8 Sphere Frame

5 Metre Hemisphere Frame

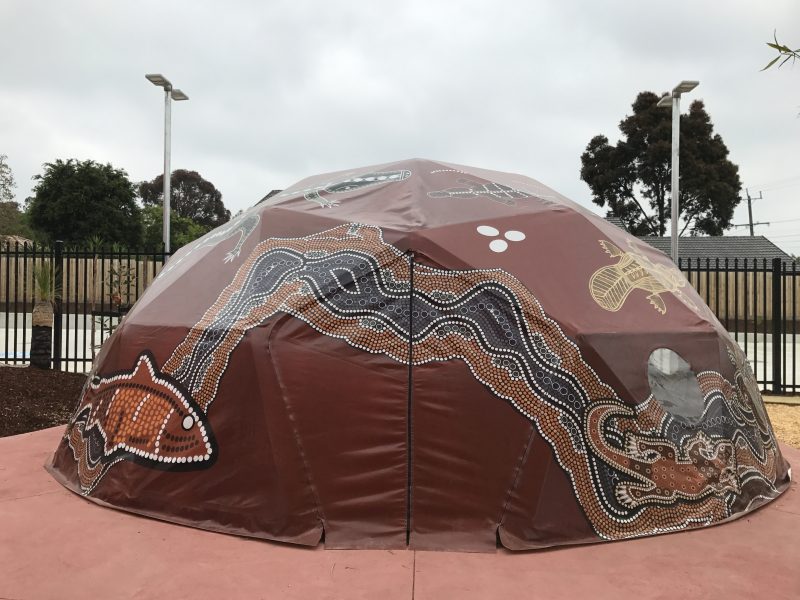

Child Care Centre

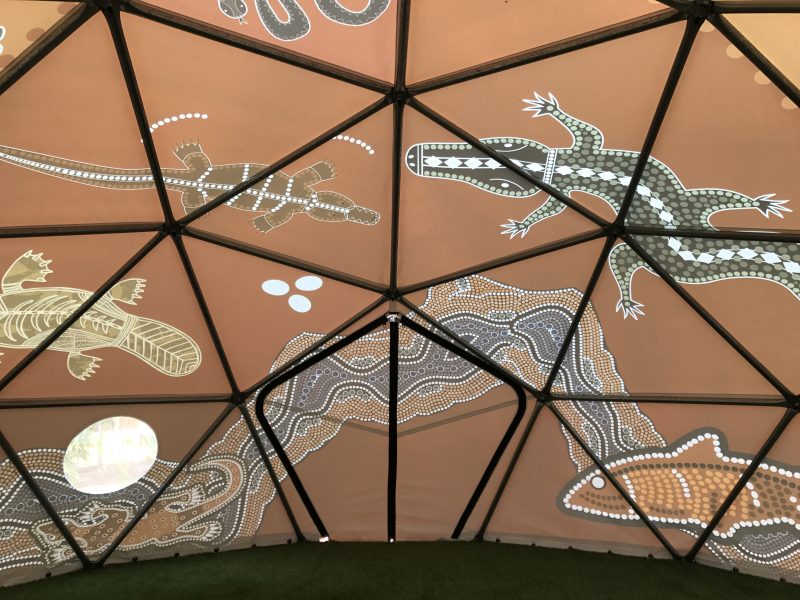

Child Care Centre

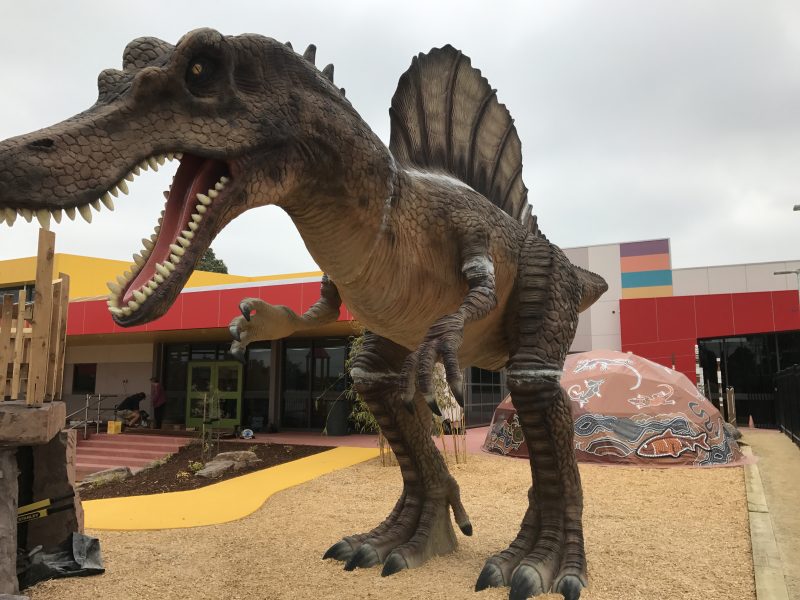

Child Care Centre

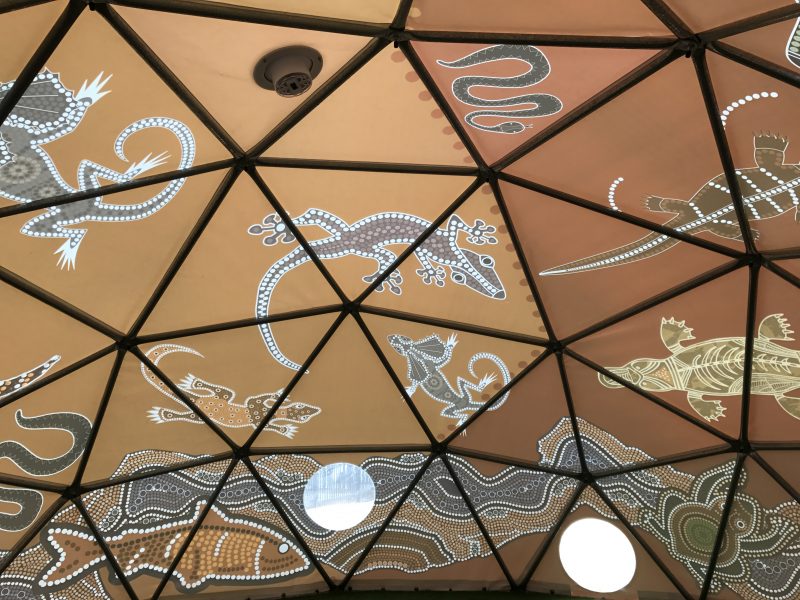

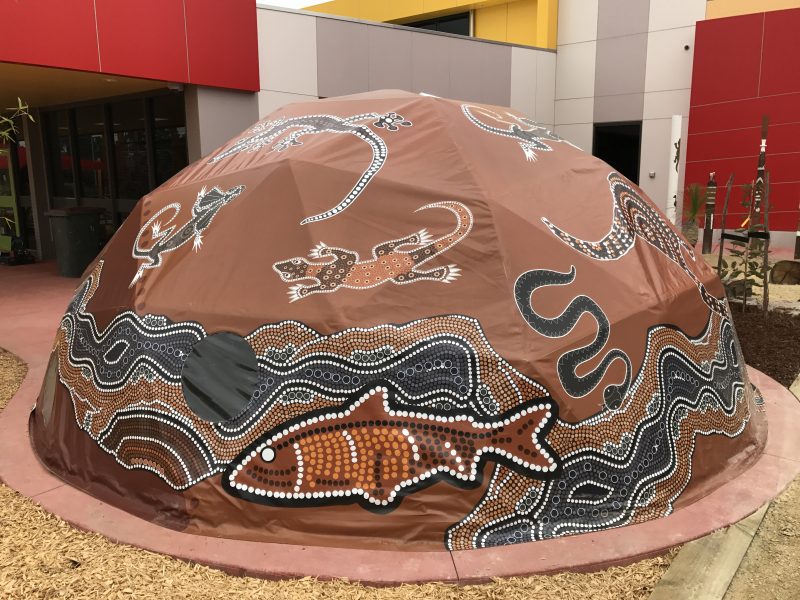

Child Care Centre Full Digital Print

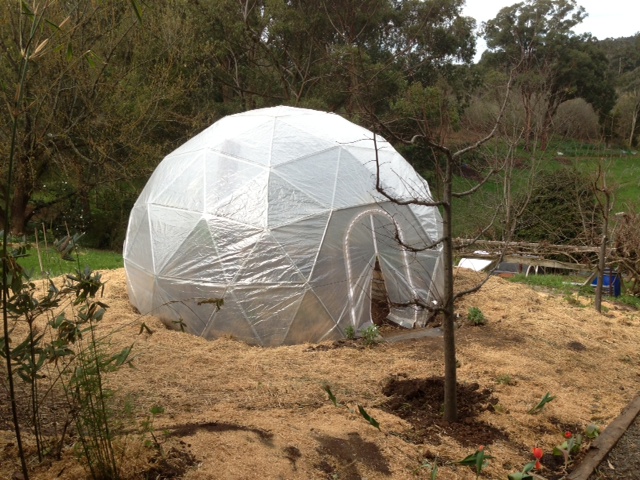

5 Metre 5/8 Sphere Hortcover canopy

5 Metre diameter timber frame

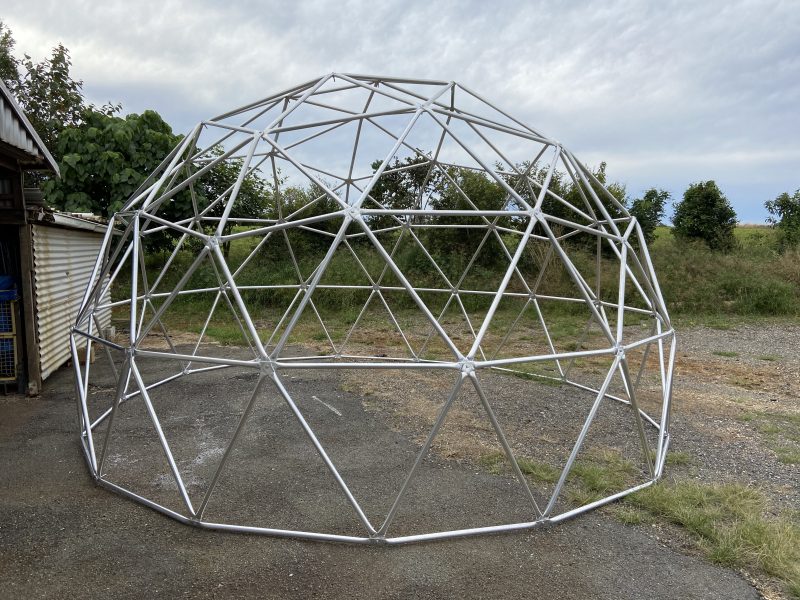

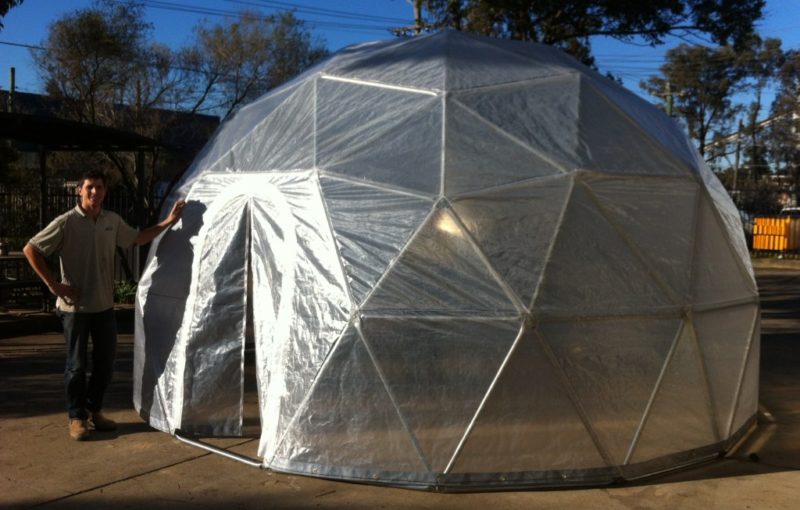

5m diameter 5/8 Sphere. Aluminium tube. 32mm

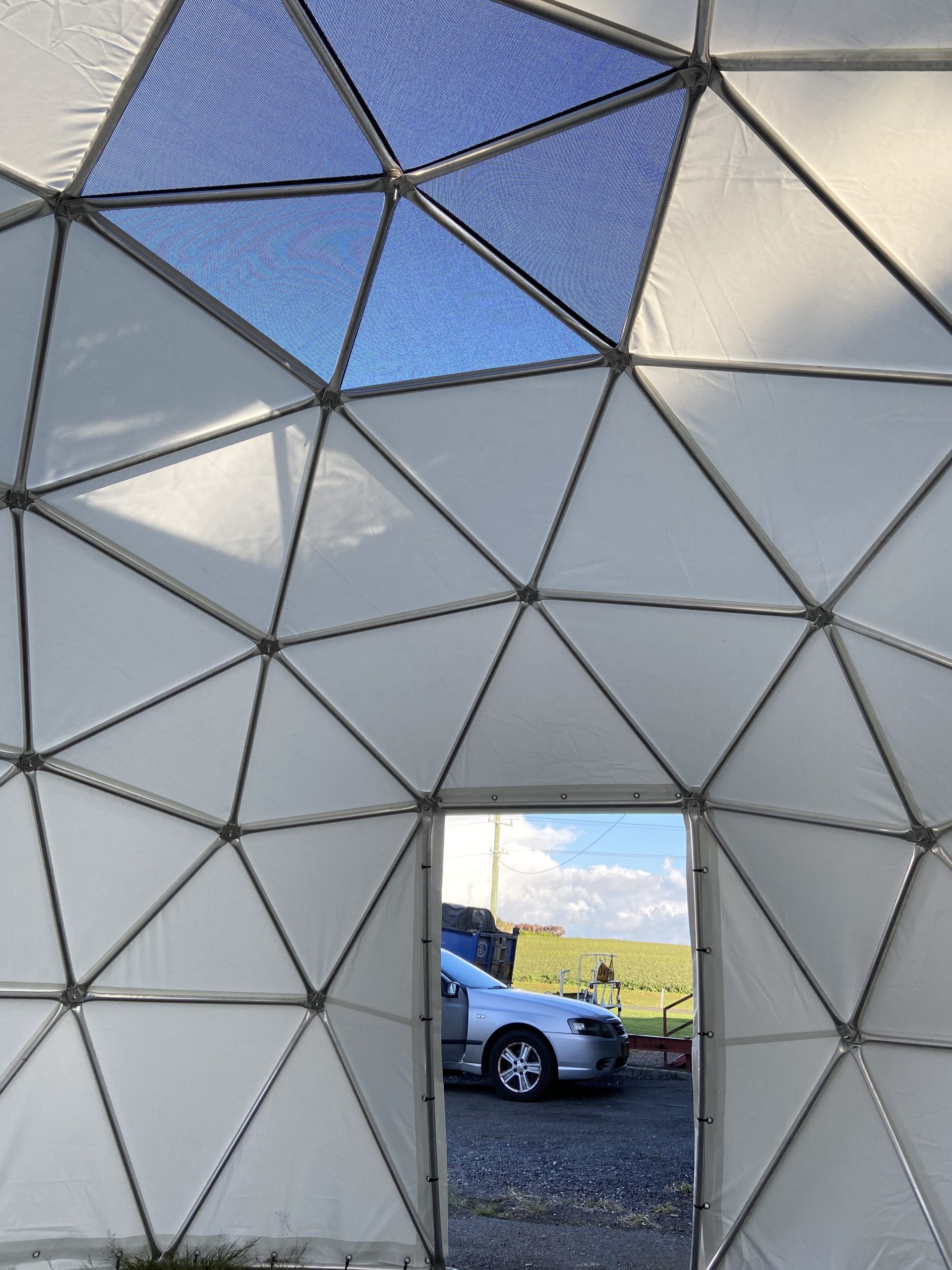

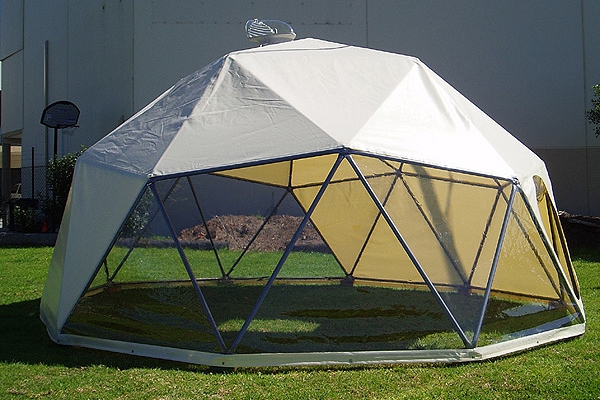

5m x 5/8 Sphere. Mesh in top pentagon

5m diameter. 3m high. 20 square metres floor area

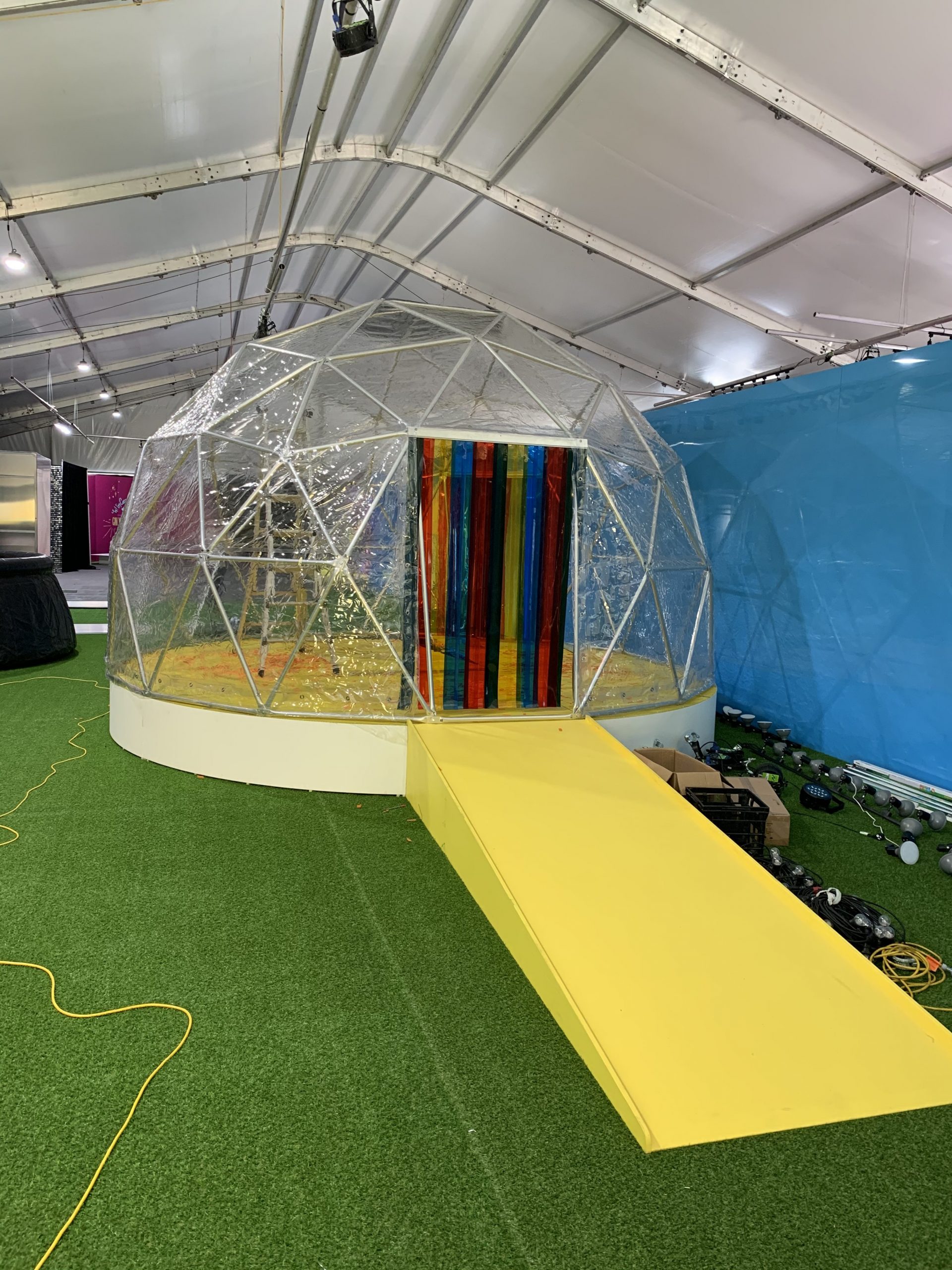

5 Metre 5/8 Sphere. Clear vinyl cover

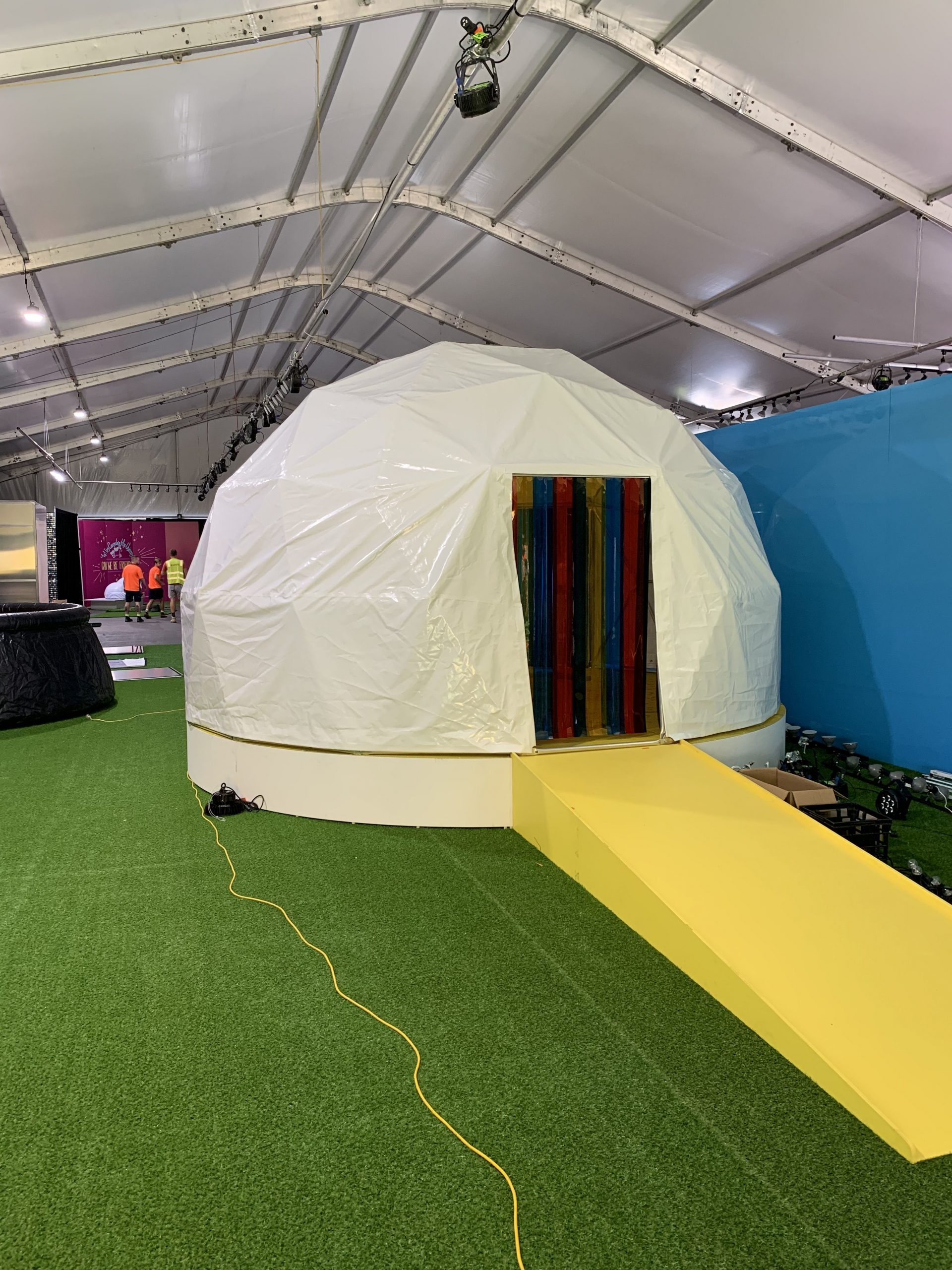

5 Metre 5/8 Sphere. Opaque cover

5 Metre 3/8 Sphere. 120 Struts

5 Metre 5/8 Sphere. 165 Struts

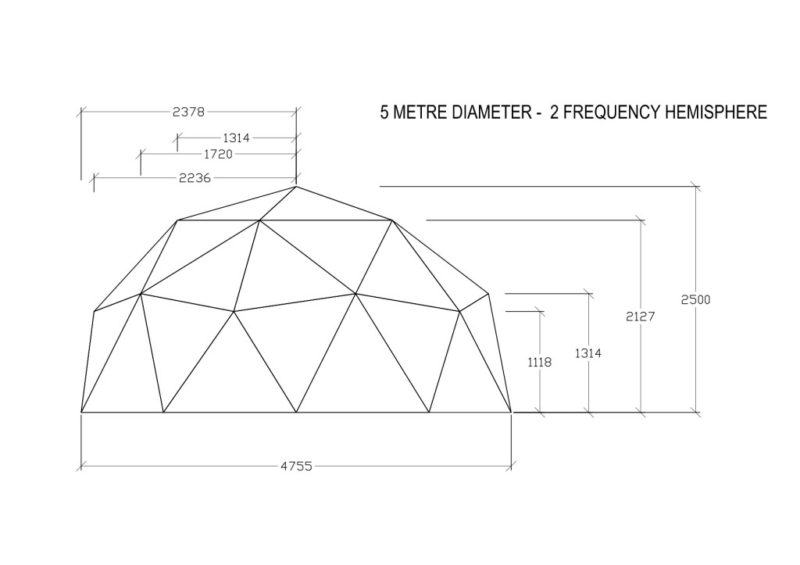

5 Metre Hemisphere. 65 struts

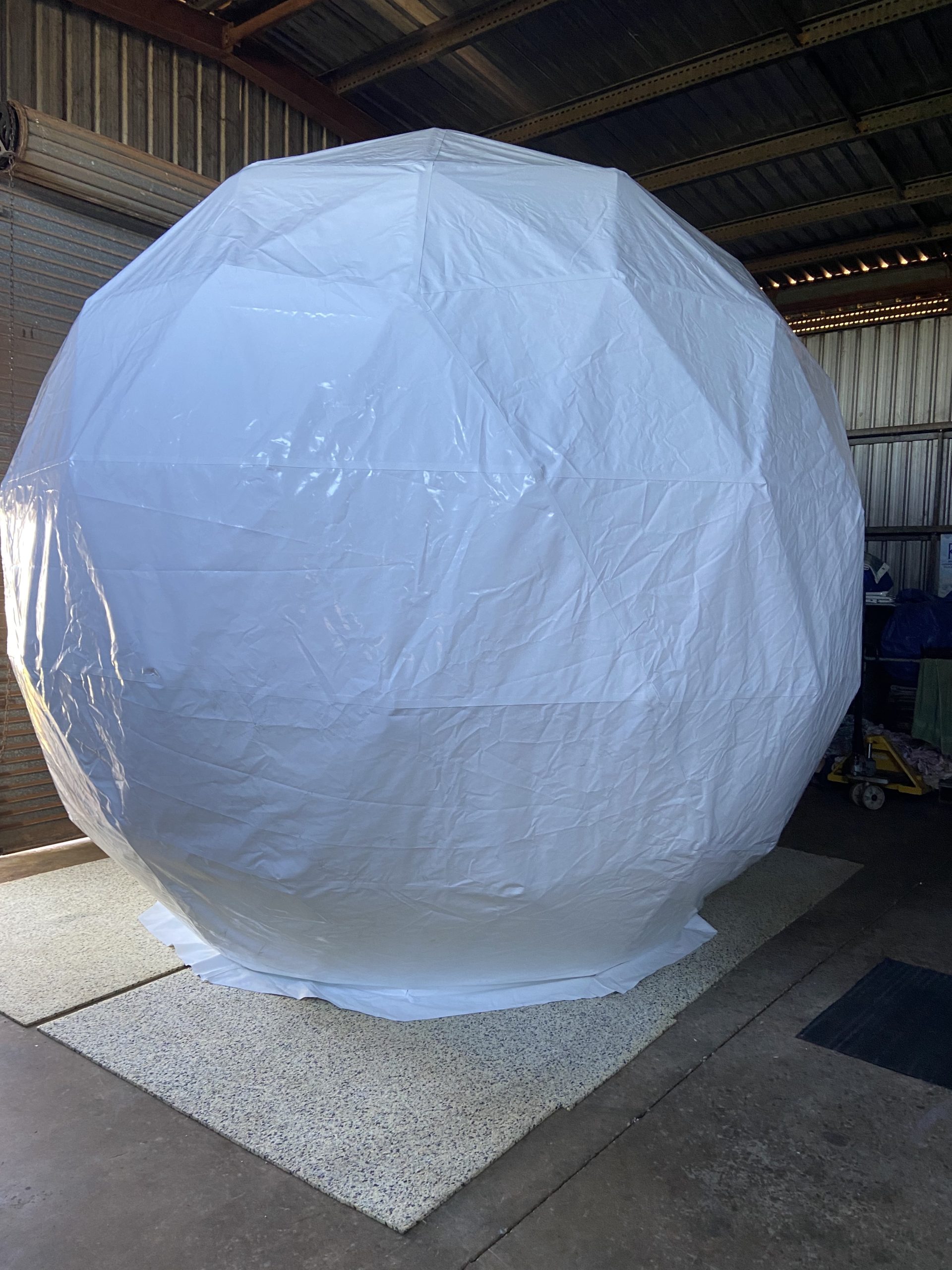

Radome. 4m x 7:8
